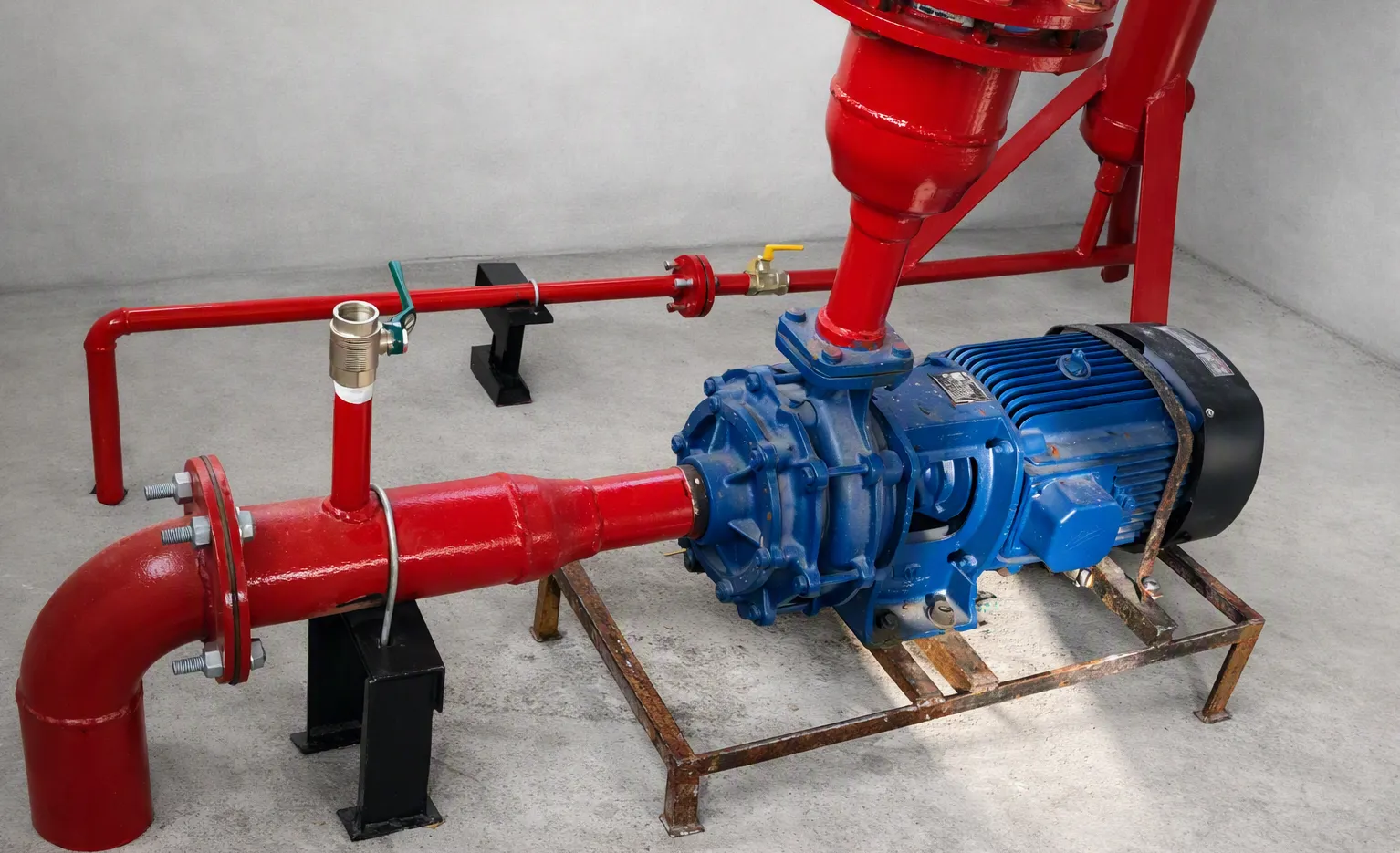

This image highlights a centrifugal fire pump installation forming the heart of the building’s fire protection system. The blue pump, coupled with an electric motor, ensures reliable water flow through the red-painted MS piping network designed for emergency operation.
Technical Overview:
Pump Type: Horizontal centrifugal pump, dynamically balanced impeller for smooth operation.
Motor Rating: Three-phase induction motor, IP55 protection, directly coupled via flexible coupling.
Suction Line: Connected through a foot valve and strainer assembly to maintain prime and prevent debris entry.
Delivery Line: Fitted with pressure gauge, isolation valve, and non-return valve for controlled discharge.
Support Structure: MS frame with anti-vibration mounts for stability and alignment.
Coating: Dual-layer primer and fire red enamel finish per IS 3844 standards.
Purpose:
This setup ensures continuous water supply to hydrant and sprinkler systems during fire emergencies, maintaining system pressure and operational readiness as per NBC Part 4 – Fire & Life Safety guidelines.
