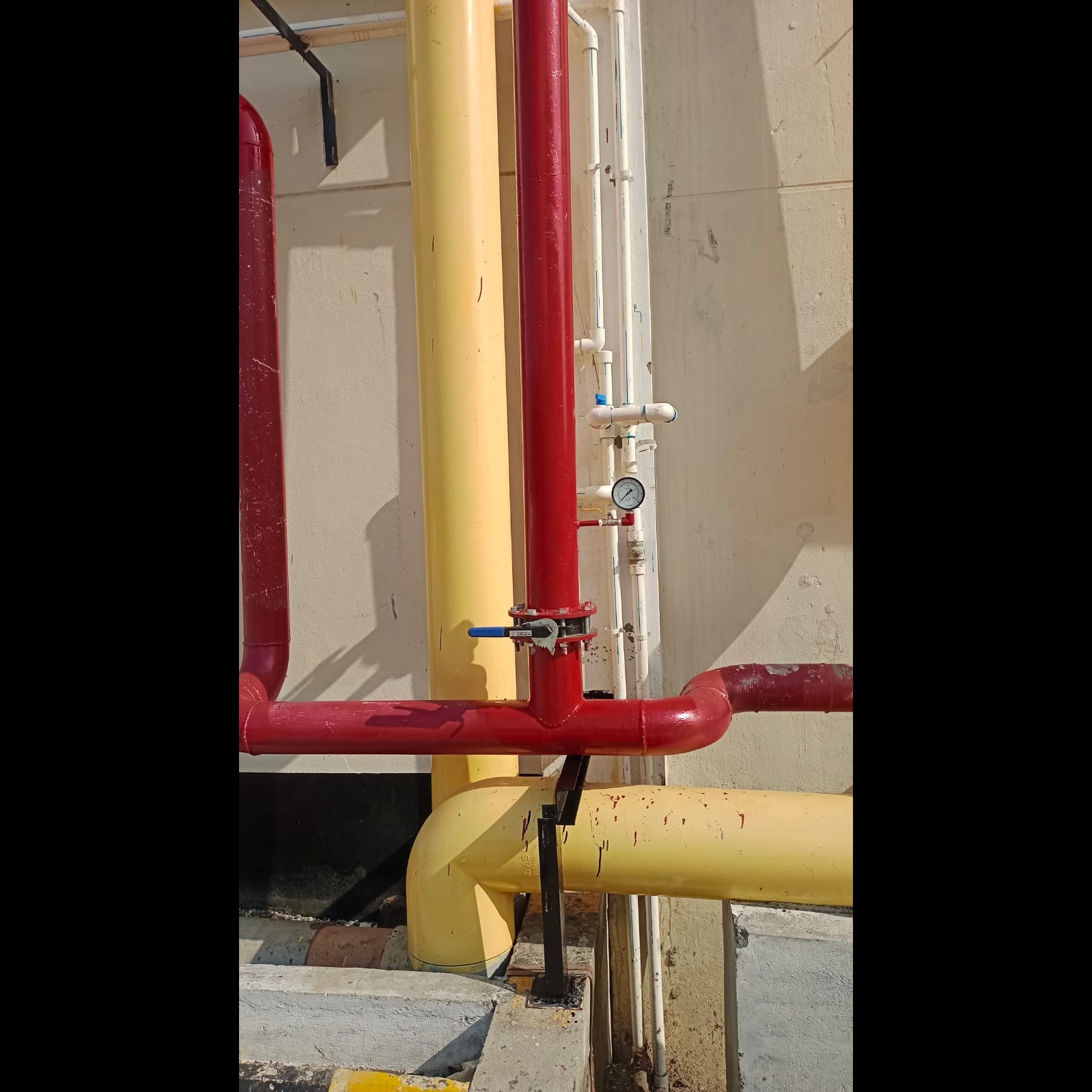

A section of the fire hydrant pipeline network featuring a pressure gauge and isolation valve for system monitoring and maintenance. The red-painted pipe indicates the dedicated fire water line, while adjacent yellow pipelines represent utility or process lines, ensuring clear segregation for safety.
This arrangement enables real-time pressure checks and controlled flow during testing or emergency operation, maintaining compliance with NFPA and IS fire protection standards.
Proper color coding and valve accessibility enhance operational efficiency and safety reliability within the industrial premises.
